Build a Guitar Cabinet

build a guitar cabinet plan

Guitarists know how difficult it can be to organise guitars, cables and rack equipment. Our simple guide provides all the measurements and instructions you need to build a cost effective, space saving cabinet which can accommodate up to 7 guitars and 10u of rack equipment. Suggested cable routing ports allow easy connection of floor pedals and you can even locate a head amp on top.



The good news is that all the components you require are readily available online and at your local hardware store, and it is a simple task to get your local wood-yard to cut the required panels to size.





Contents

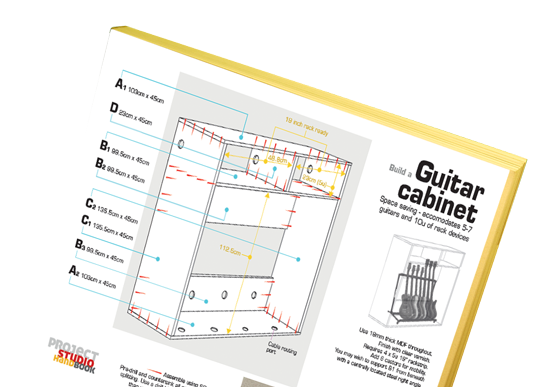

01 Detailed wire-frame diagram including measurements

02 Screw locations, size and suggestions for safe split free assembly
03 Suggested cable routing port locations
