Build a double-width 60u 19" Outboard Rack
The 19 inch rack format is a worldwide studio standard but buying a pre-built rack enclosure can be expensive. The good news is that all the components you require are readily available online and at your local hardware store, and it is a simple task to get your local wood-yard to cut the required panels to size.
Our simple guide provides all the measurements and instructions you need to build and assemble a rack capable of accommodating 60u of rack equipment.
Contents

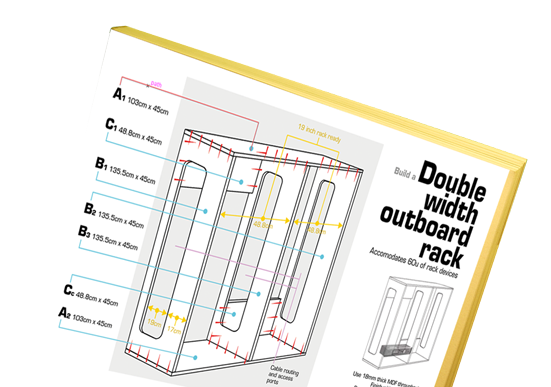

01 Detailed wire-frame diagram including measurements
02 Screw locations, size and suggestions for safe split free assembly
03 Suggested cable routing port locations
